What is Codesys?

CODESYS is a development environment for programming controller applications according to the international standard IEC 61131-3. It provides a set of programming languages, including a ladder diagram (LD), a function block diagram (FBD), structured text (ST), an instruction list (IL), and a sequential function chart (SFC), to develop applications for various types of controllers, such as programmable logic controllers (PLCs) and industrial PCs.

CODESYS provides a comprehensive set of tools for developing, debugging, and testing control applications. These tools include a graphical user interface (GUI) for creating and managing projects, a code editor for writing and editing code, a compiler for compiling code into executable binaries, a simulator for testing and debugging applications, and a debugging tool for diagnosing and fixing issues in the code.

CODESYS is used in a wide range of industries, including manufacturing, transportation, energy, and building automation, among others. It is known for its flexibility, scalability, and reliability, which make it a popular choice for developing control applications for complex systems.

What is the list of contents to learn structure text in codesys?

To learn Structured Text (ST) programming in CODESYS, the following topics should be covered:

1. Introduction to Structured Text programming language

2. Variables and data types in Structured Text

3. Operators and expressions in Structured Text

4. Control structures in Structured Text, including conditional statements (IF, CASE), loops (FOR, WHILE), and jumps (GOTO, RETURN)

5. Arrays and structures in Structured Text

6. Functions and function blocks in Structured Text

7. File operations in Structured Text

8. Debugging and troubleshooting in Structured Text

9. Best practices and coding standards for Structured Text programming in CODESYS.

It is also recommended to have a good understanding of the underlying control systems concepts, such as ladder logic, function block diagrams, and sequential function charts, to effectively use ST in developing control applications. Additionally, knowledge of the IEC 61131-3 standard, which defines the programming languages and communication protocols used in industrial automation, is also helpful.

1. Introduction to Structured Text programming language

Structured Text (ST) is a high-level programming language used for developing control and automation applications. It is one of the five languages defined in the IEC 61131-3 standard for programmable logic controllers (PLCs). ST is a textual language that uses a syntax similar to Pascal and C.

ST provides a powerful set of constructs for developing control algorithms and logic. It supports the use of variables, data types, arrays, structures, operators, expressions, control structures, functions, and function blocks. These constructs enable programmers to develop complex control algorithms and logic with ease.

ST is a strongly typed language, which means that every variable must be declared with a data type before it can be used. ST supports a range of data types including BOOL, BYTE, WORD, DWORD, INT, DINT, REAL, TIME, and DATE.

ST provides a range of control structures including conditional statements (IF, CASE), loops (FOR, WHILE), and jumps (GOTO, RETURN). These control structures enable programmers to implement complex control algorithms and logic.

ST also supports the use of functions and function blocks. Functions are reusable code modules that perform a specific task. Function blocks are more advanced modules that provide input and output parameters, as well as internal variables and logic. Function blocks can be used to encapsulate complex algorithms and logic, making them easier to understand and reuse.

ST is commonly used in industrial automation and control systems. It is often used in conjunction with other IEC 61131-3 languages such as ladder logic, function block diagram, and sequential function chart. ST is a powerful and flexible language that can be used to develop a wide range of control and automation applications.

2. Variables and data types in Structured Text

Structured Text (ST) is a programming language used in industrial automation to develop control applications. Like any programming language, ST uses variables and data types to represent and manipulate data.

Variables in Structured Text are declared using the VAR keyword followed by the variable name and data type. For example:

In this example, four variables are declared: a of type INT (integer), b of type REAL (floating-point), c of type BOOL (boolean), and d of type ARRAY[0..9] OF INT (integer array with ten elements).

Structured Text supports several data types, including:

• BOOL: Boolean data type representing TRUE or FALSE values

• BYTE: Unsigned 8-bit integer data type

• WORD: Unsigned 16-bit integer data type

• DWORD: Unsigned 32-bit integer data type

• INT: Signed 16-bit integer data type

• DINT: Signed 32-bit integer data type

• REAL: Single-precision floating-point data type

• LREAL: Double-precision floating-point data type

• TIME: Time data type representing time duration in milliseconds

• DATE: Date data type representing a date in the format of DD/MM/YYYY

• TIME_OF_DAY: Time of day data type representing a time in the format of HH:MM:SS

• DATE_AND_TIME: Date and time data type representing both date and time.

In addition to these basic data types, Structured Text also supports arrays, structures, and user-defined data types. Arrays can be one-dimensional or multi-dimensional, and structures can contain a group of variables with different data types. User-defined data types allow developers to define their own data types, which can be more meaningful and intuitive for a specific application.

It is important to choose the appropriate data type for a variable to ensure efficient memory usage and accurate representation of data.

3. Operators and expressions in Structured Text

Structured Text (ST) supports a wide range of operators and expressions to manipulate variables and data. Here are some of the most common ones:

1. Arithmetic Operators: ST supports standard arithmetic operators, including + (addition), - (subtraction), * (multiplication), / (division), and % (modulus).

2. Comparison Operators: ST supports comparison operators, including = (equal to), <> (not equal to), > (greater than), < (less than), >= (greater than or equal to), and <= (less than or equal to).

3. Logical Operators: ST supports logical operators, including AND, OR, and NOT.

4. Bitwise Operators: ST supports bitwise operators, including AND, OR, XOR, and NOT.

5. Assignment Operators: ST supports assignment operators, including := (simple assignment), += (increment assignment), -= (decrement assignment), *= (multiplication assignment), /= (division assignment), and %= (modulus assignment).

6. Conditional Operators: ST supports the conditional operator IF THEN ELSE to evaluate a condition and return a value based on the result.

7. String Operators: ST supports string operators, including + (concatenation) and LEN (length).

Expressions in ST are formed by combining operators and operands. An operand can be a variable, constant, or another expression. For example, the following code snippet shows a simple expression that calculates the area of a rectangle:

In this example, two variables width and height are declared and initialized with values. The area variable is then calculated using the * (multiplication) operator and assigned to the result. This is a simple example of an arithmetic expression.

In summary, ST supports a wide range of operators and expressions to manipulate variables and data. It is important to understand the syntax and semantics of these operators and expressions to write efficient and effective code.

4. Control structures in Structured Text, including conditional statements (IF, CASE), loops (FOR, WHILE), and jumps (GOTO, RETURN)

Structured Text (ST) provides several control structures that allow developers to control the flow of execution of a program. Here are some of the most common ones:

Conditional Statements: ST supports the IF...THEN...ELSE statement to execute different code blocks based on a condition. For example:

ST also supports the CASE statement to evaluate multiple conditions and execute different code blocks based on the result. For example:

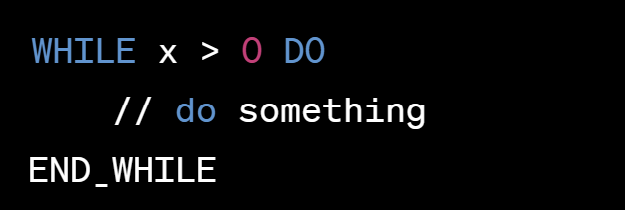

ST also supports the WHILE loop to execute a code block as long as a condition is true. For example:

Jumps: ST supports the GOTO statement to jump to a specific label within a program. For example:

ST also supports the RETURN statement to exit a subroutine or function and return a value. For example:

In this example, the RETURN statement is used to exit the MyFunction function and return a value of 1 or 0 depending on the condition.

These are just some of the control structures that ST supports. By combining these structures with variables, data types, operators, and expressions, developers can create complex programs that perform various automation tasks. It is important to use these structures appropriately to ensure efficient and effective code.

5. Arrays and structures in Structured Text
Arrays and structures are powerful data structures in Structured Text (ST) that allow developers to store and manipulate complex data types efficiently. Functions and Function Blocks are modular programming constructs that allow developers to write reusable code blocks that perform specific tasks. Here is an overview of arrays, structures, functions, and function blocks in ST:

1. Arrays: ST supports one-dimensional and multi-dimensional arrays of any data type. Arrays can be declared and initialized as follows:

Elements of an array can be accessed using the index operator []. For example:

Structures: ST supports structures or user-defined data types that can contain a group of variables of different data types. Structures can be declared and initialized as follows:

Elements of a structure can be accessed using the dot operator .. For example:

6. Functions and function blocks in Structured Text

Functions: Functions in ST are subroutines that return a value and can accept input parameters. Functions can be declared and defined as follows:

In this example, MyFunction is a function that accepts two input parameters x and y and returns a value of data type BOOL. Within the function, some tasks are performed, and a result is computed and returned at the end.

Function Blocks: Function Blocks in ST are modular programming constructs that allow developers to write reusable code blocks that perform specific tasks. Function Blocks can be declared and defined as follows:

In this example, MyFunctionBlock is a Function Block that accepts two input parameters x and y and returns an output parameter result. Within the Function Block, some tasks are performed, and the output value is computed and returned at the end.

These are just some of the powerful constructs in ST that allow developers to write efficient and reusable code. By combining these constructs with control structures, operators, and expressions, developers can create complex programs that perform various automation tasks.

7. File operations in Structured Text

File operations in Structured Text (ST) allow developers to perform file input and output operations. The standard ST library provides functions to read and write files on the file system. Here are some examples of file operations in ST:

1. Opening a file: The FOPEN function is used to open a file for reading or writing. The function returns a file handle that can be used to perform read or write operations.

Reading and writing files: Once a file is opened, the FREAD and FWRITE functions are used to read and write data to the file, respectively. The functions take the file handle and a buffer variable as input parameters.

Closing a file: The FCLOSE function is used to close a file that has been opened for reading or writing.

8. Debugging and troubleshooting in Structured Text

Debugging and troubleshooting in ST can be challenging, but there are several techniques that developers can use to identify and fix errors in their code. Here are some tips for debugging and troubleshooting in ST:

1. Using a debug environment: Most Integrated Development Environments (IDEs) for programming in ST provide debugging tools that allow developers to step through their code, set breakpoints, and inspect variables.

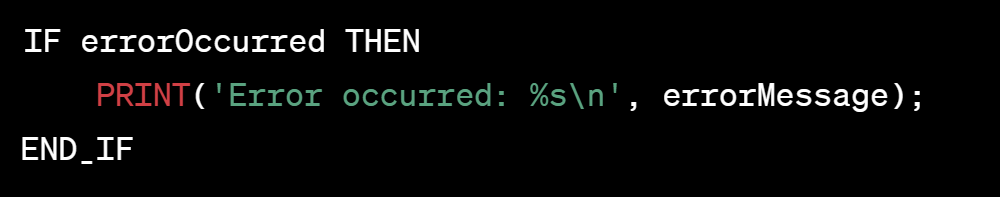

2. Printing debug messages: Developers can use the PRINT or PRINTF functions to output debug messages to the console or a file. This technique can help identify the location of an error in the code.

Using error handling: Error handling code can be added to an application to catch errors and take appropriate action. This technique can help identify the root cause of an error and provide information to the user about what went wrong.

Checking variable values: When an error occurs, it can be helpful to check the values of variables at different points in the code to identify the source of the problem.

By using these techniques, developers can identify and fix errors in their code and create robust and reliable applications.

9. Best practices and coding standards for Structured Text programming in CODESYS.

Adhering to best practices and coding standards is important for developing high-quality, maintainable, and reliable code in Structured Text (ST) programming in CODESYS. Here are some best practices and coding standards that can help improve the quality of your ST code:

1. Consistent naming conventions: Use consistent and meaningful names for variables, functions, and function blocks. Follow a naming convention that reflects the purpose and scope of the item. For example, use a prefix to indicate the data type, such as b for BOOL, i for INT, and r for REAL.

2. Modularization: Break up large and complex programs into smaller, manageable modules. Use function blocks to encapsulate logic that can be reused throughout the program. This helps to make the code easier to read, understand, and maintain.

3. Commenting: Add comments to your code to explain what it does, how it works, and why it is needed. Comments should be concise, clear, and relevant. Use comments to document important details such as input and output parameters, assumptions, and limitations.

4. Error handling: Incorporate error handling code into your program to detect and handle errors gracefully. Use structured exception handling to catch and handle errors in a consistent and predictable way.

5. Testing and debugging: Test your code thoroughly to ensure that it works correctly and meets the requirements. Use debugging tools to identify and fix errors in your code.

6. Performance optimization: Use efficient algorithms and data structures to optimize the performance of your code. Avoid unnecessary loops, branching, and function calls.

7. Standardization: Follow industry-standard coding conventions and guidelines. Use common programming practices and techniques to improve the readability, maintainability, and reliability of your code.

By following these best practices and coding standards, you can develop high-quality, maintainable, and reliable code in Structured Text programming in CODESYS.

Happy Learning.

Thank You !!!
